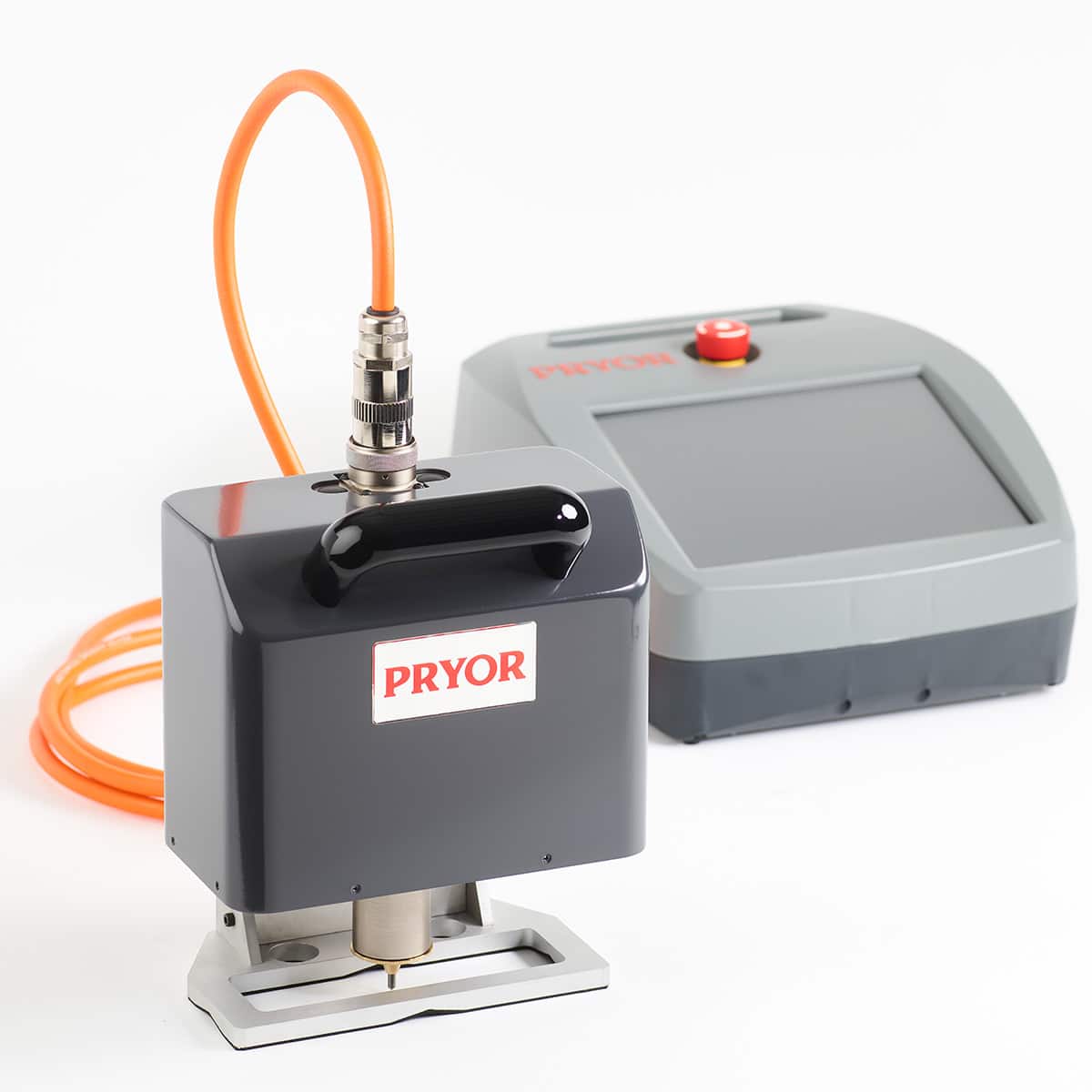

PortaDot 130-30 – Portable Dot Peen Marking Machine
The Pryor PortaDot 130-30 is a robust and reliable handheld marking machine with a marking window of 130mm x 30mm. It provides a fast and portable method of dot-peen marking, otherwise known as dot marking. Ideal for marking permanent alphanumeric, logo or 2D barcode information onto high variety, immobile, large or heavy components.
Portable Dot Peen Marking Machine
The Portadot 130-30 is fitted with a high power electromagnetic solenoid, allowing deep dot peen marking with excellent consistency. Often used in rail, oil and gas/pipeline, casting/forging, VIN marking, and construction applications and Can be used as a portable vin number marking machine
Pryor PortaDot 130-30 Key Features
- A pneumatic version is available for extra deep marking – An ideal portable pneumatic marking machine for vin number marking
- Inbuilt illumination system automatically actuated with motion sensor
- Highly rigid V-shaped front mask with positioning scale
- Robust aluminum casing for heavy duty industrial use
- Controlled with 4000 Series Controller
- Flat X/Y movement with no pivoting axis provides consistent marking depth throughout marking area
- The standard machine is supplied with:
- Electromagnetic solenoid
- 3m cable
- Mains powered controller
The Pryor PortaDot 130-30 is a robust and reliable handheld marking machine with a marking window of 130mm x 30mm. It provides a fast and portable method of dot-peen marking, otherwise known as dot marking. Ideal for marking permanent alphanumeric, logo or 2D barcode information onto high variety, immobile, large or heavy components.
- Portable, Robust Dot Peen Marking Machine
- 130mm x 30mm marking window
- Comes with Pryor’s 4000 Series Controller as standard
- Fully compatible with Pryor’s PC based Traceability Software
- Standard electric version with the option of a pneumatic upgrade if a very deep mark is required
- Standard Character Sizes: 0.09mm – 129.9mm in increments of 0.09mm (5×7 font) or 0.13 (7×9 font)
- Dimensions: 238mm(H) x 220mm (W) x 173mm (L)
- Weight: 6.5kg
- Drive Mechanism: belt driven
- Flat X/Y movement with no pivoting axis provides consistent marking depth throughout the marking area
- Inbuilt illumination system automatically actuated with motion sensor
- Two stationary motors for higher acceleration, speed and accuracy and no motor cable fatigue failures
- In-built V-mask on both the x and y axes for marking curved surfaces
- Connectivity Options: 1 x RS232, 1 x USB (that has the option of being removed to create 2 x RS232) and digital I/O (8 in 6 out) connectivity. Optional Ethernet TCP/IP and optional Field Bus
- Cable length: 3m standard (6m or 10m optional)
- Dot Mark output styles: 5 x 7,7 x 9,Varidot, 2D Data Matrix, HPGL, BMP Logos
- Memory Capacity: up to 9000 layouts
- Controller features industrial 10.4 inch touchscreen with additional option of connection an external keyboards
- On screen mark preview and trial run features
- Controller dimensions: 375mm x 335mm x 132 mm
- Controller weight: 6.5kg
- Power supply: AC Input 50/60Hz; 100-240VAC
- Optional battery powered controller: 36V Li-Ion 3.0Ah/108Wh battery
- Safety features: Remote start/Stop control box
- Additional features: re-circulating ball-linear guideways to provide the highest marking accuracy
- Head cable industrial steel connector to easily disconnect the marking head when needed
- Pneumatic Air Supply requirements: Power 6 bar (87psi) non-lubricated, dry. (Deep Pneumatic version ONLY)
