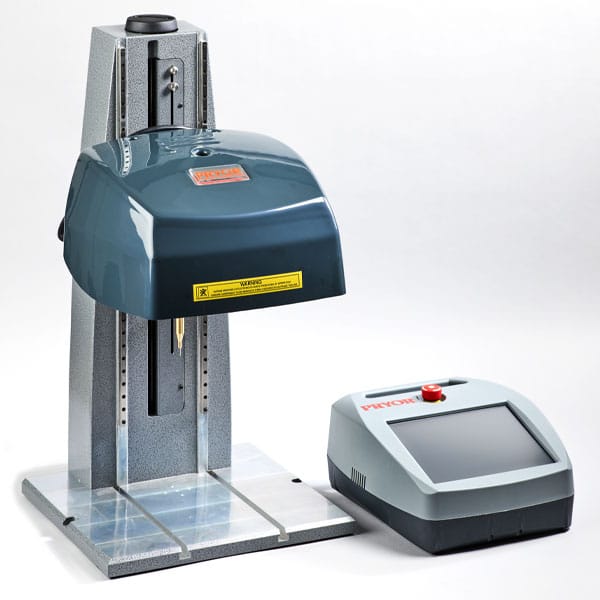

Pryor Column Mounted Pin Markers
Pryor's quiet and fast pin markers are available as either USB-based or embedded LCD. Both have the same 100 x 75 mm marking area. Features include:
- Stepper motor-driven X & Y axis and adjustable Z axis allows multiple height components to be marked.
- Programmable electric solenoid with nine depth settings.
- 240v/110v single phase supply – no pneumatics required.
- Low running costs and virtually no consumable costs.
- Advanced operating software with standard features including serial numbering, passwords, arc marking, and time/date marking.
- Standard character sizes: 0.18 - 99.9 mm in increments of 0.18 mm.
- Marking formed: 5 x 7, 7 x 9, Varidot, HPGL, BMP Logos.
- Marking speed: Variable, depending on application.
- All Pryor machines are available in these standard sizes: 60 x 60 mm, 100 x 100 mm, 150 x 150 mm, and 300 x 150 mm. Features include:
- Memory storage of up to 1350 marking programs.
- 2x RS232 and digital I/O (8 in, 6 out) connectivity.
- Industrial communication protocols.
- PC option using Traceable-IT graphical software.
- Durable integrated membrane keyboard with LCD linked function keys.
- Very large embedded graphical display.
- Full QWERTY integrated membrane keyboard with addition PS/2 port for external keyboards.
- On-screen mark preview and trial-run features.
- Advanced standard features include serial numbering, passwords, arc marking, time/date and logo marking.
- Standard character sizes: 0.15 - 99.9 mm in increments of 0.15 mm.
- Character formats and logos: 5 x 7, 7 x 9, Varidot, HPGL, BMP Logos.
- Marking speed: Variable, depending on application.
