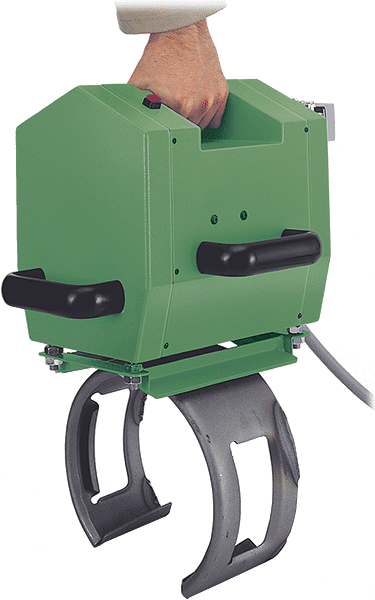

VERY ROBUST / LARGE WINDOW / VERY DEEP PIN MARKING

These powerful portable dot marking machines are capable of indenting components with deep marks of up to 1 mm in mild steel or 1.5 mm in aluminum. Their robust mechanism and steel housing are especially well-suited to industrial dot peen applications. Features include:

•  Pneumatic (DPH) or electromagnetic (EH) dot marking versions. Capable of marking all engineering materials up to 62HRc (800Hv).
•  Marking area: 100 x 75 mm.

Options include:

•  V faceplate for marking round components
•  Spring balance and bracket for ease of use.
•  6 meter umbilical cable.
•  PC option using Traceable-IT graphical software.
•  TCP/IP (10BaseT) Ethernet module for 3000 controller.
