What's the real difference between the value and premium dot peen lines?

Our value line covers straightforward, repeatable marking reliably, at a lower price; it's built with a bent-steel frame and belt-driven axis motion. Our premium line adds a cast column and base with ballscrew-driven axis motion for tighter, more repeatable positioning, plus autosense, closed-loop verification, and validation, and it's the standard we recommend for aerospace-grade requirements.

Can dot peen mark Data Matrix and barcodes?

Yes, on both lines, but only 2D codes such as Data Matrix. Dot peen's mark is a grid of dots, so it isn't suited to the fine parallel lines of a 1D linear barcode. If your job requires 1D, we'll help you choose a method that does.

Does every dot peen system run the same software?

Not exactly. Our handhelds run on Android or iOS, and our column-mounted and premium systems run on Traceable-IT. If your job is straightforward marking that doesn't call for that level of capability, the value line covers it well; if you need tighter control and full traceability, we'll point you to the line built for it.

Is dot peen safe for flight-critical parts?

Yes. We engineer the process to be tightly controlled and low-stress, which is why it's the recommended method for flight-critical aerospace components.

Does verification happen automatically?

On our premium tier, verification can be built into the marking cycle as an available option, reading and grading each mark in real time as it's produced.

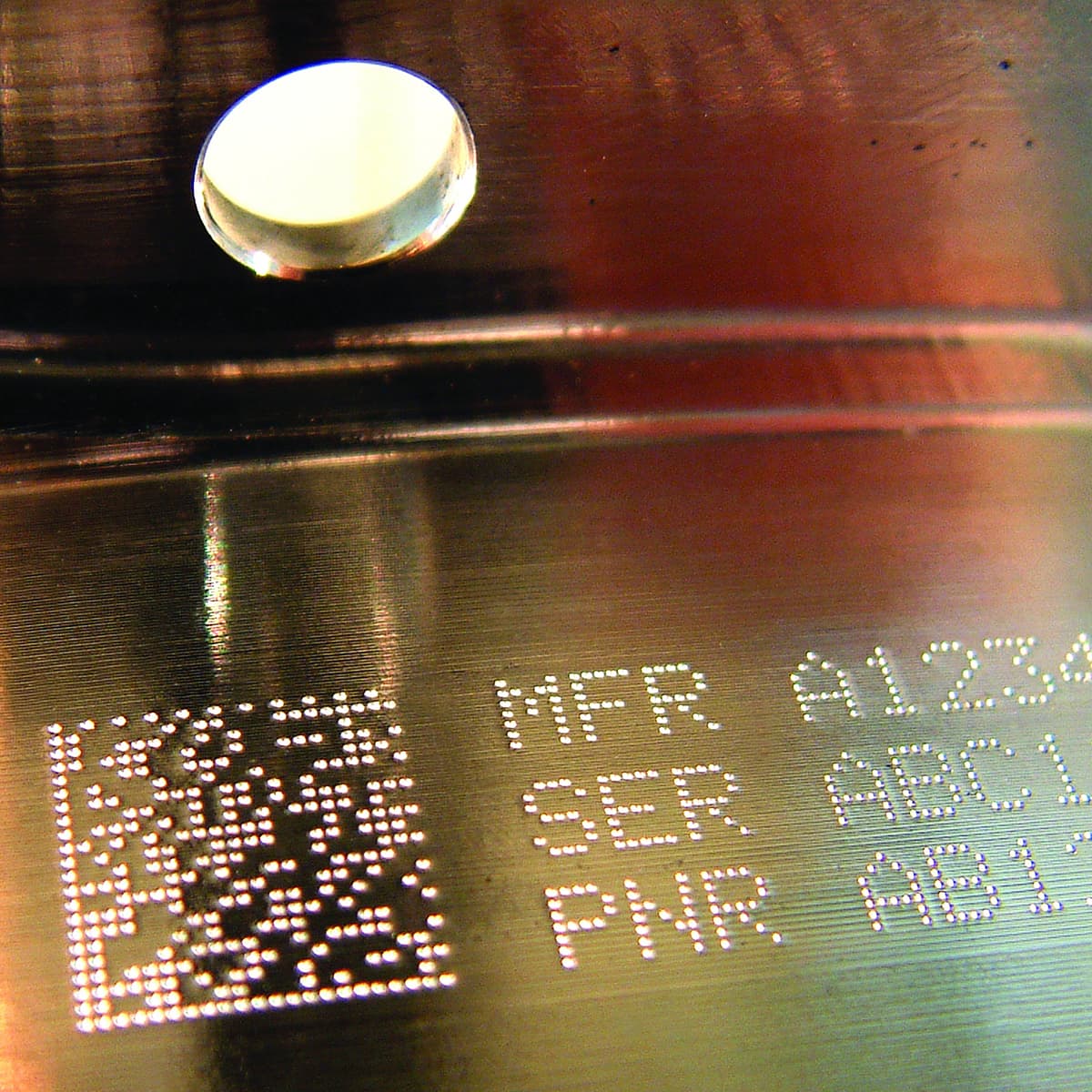

A dot peen marking machine stamping a dot-matrix QR code and letter onto a metal surface

Marking Technology

Dot Peen Marking Systems from the Leaders in Pin Marking

Monode's dot peen pedigree runs from our foundation of invention and innovation to our current line up. We engineered the original computer-controlled pin marker, and it took the rest of the industry twenty years to catch up.

Today our dot peen line spans two price points and three form factors, all built around a mark so low-stress it's the recommended method for flight-critical aerospace components.

Compare Pin Markers

Request a Test Mark

75-Plus Years in the Marking Industry.

From the original computer-controlled pin marker to today's premium verification systems.

Standards Authority on Staff.

A contributing author to MIL-STD-130 and other industry standards works alongside our engineering team.

Same-Day Service Commitment.

Backed by secured on-site stock and a customer service desk monitored around the clock.

Software That Matches the Machine.

From Android and iOS on our portables to Traceable-IT across the rest of the line, we cover the platform you need.

Column Mounted Systems

When the part comes to the marker. We offer bench and floor configurations for everything from low-volume precision work to high-volume production, in both lines.

Compare Column Mounted Systems

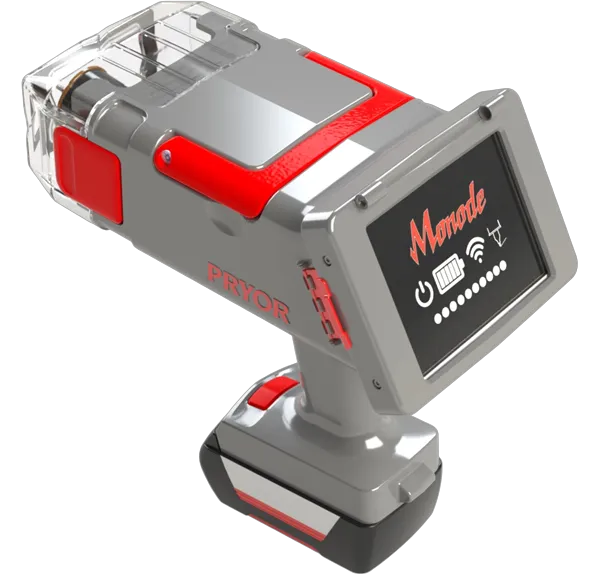

A gray and red handheld Monode dot peen marking machine with a digital display

Handheld Systems

When the part won't come to you, bring the marker to the part. Battery or app-driven, backed by the company that was first to market on Android and iOS.

Compare Handheld Systems

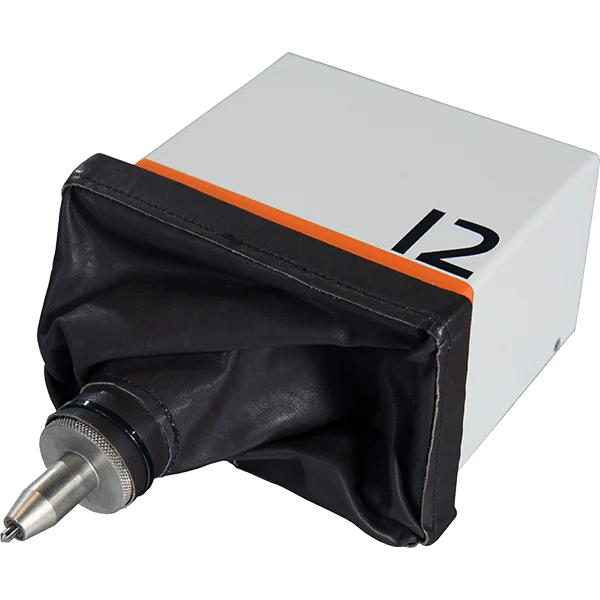

White device labeled "I2" with an orange stripe and a black fabric boot ending in a metal nozzle

Integrated Systems

Built into the line, not next to it. We ship standard configurations off the shelf and custom engineer everything else around your production line.

Explore Integrated Systems

Two Lines, Two Price Points, One Honest Explanation

We sell two dot peen lines, and we won't pretend they're the same machine with a different sticker. Our value line handles straightforward, repeatable marking at a price that makes sense for straightforward jobs. Our premium line adds tighter tolerances, autosense features, and inline verification, and it's what we put on the demanding side of aerospace, defense, automotive, and oil and gas work.

Our goal isn’t to force you in one direction. If your volume or budget points to the value line instead, that's not a downgrade. It's the right machine for a different job.

Talk to an Engineer

▪ Our Expertise

What Monode Brings
to the Box.

Standards Authorship

Monode has experts on staff who not only follow standards, but help create them. Our lead engineer is a contributing author to MIL-STD-130 and other industry standards. That depth of knowledge is why our premium tier can certify against the standards your auditor actually checks, including MIL-STD-130, AS9132, JES131, PWA 310, AIM-DPM-Guideline, ISO/IEC 15434, ISO/IEC 16022, and ISO/IEC TR 29158.

Never Taken Down an Engine

In aerospace engine marking, dot peen has never caused an engine failure. That track record, not novelty, is why it remains standard on the demanding side of an engine, and why we engineer the mark to be low-stress by design.

Software That Matches the Machine

Every dot peen system we sell, value or premium, column-mounted, handheld, or integrated, runs on the platform built for it: Android or iOS on our portables, Traceable-IT on the rest of the line. Learn one, and the next machine on that same platform feels familiar.

We'll Tell You When Pin Marking is Not the Right Call

Monode recommends etch, laser, or steel stamp over dot peen when the part calls for it. Our goal is to help you invest in the marking system, and not shoehorn you into a specific machine.

Undersize the Machine, and You'll Pay for It Twice

Buy a pin marker with less capability than the job calls for, and you'll pay to upgrade it later. Buy a mark with no built-in verification, and you'll buy the verification later, usually right after a failed audit or a line that can't prove what it made.

Monode helps you match the marking system to the job the first time. Our premium tier builds Data Matrix verification into the marking cycle itself and runs on Traceable-IT for full auditability. Our value tier handles straightforward, repeatable marking reliably, without paying for capability you don't need. Either way, you make the right purchase once.

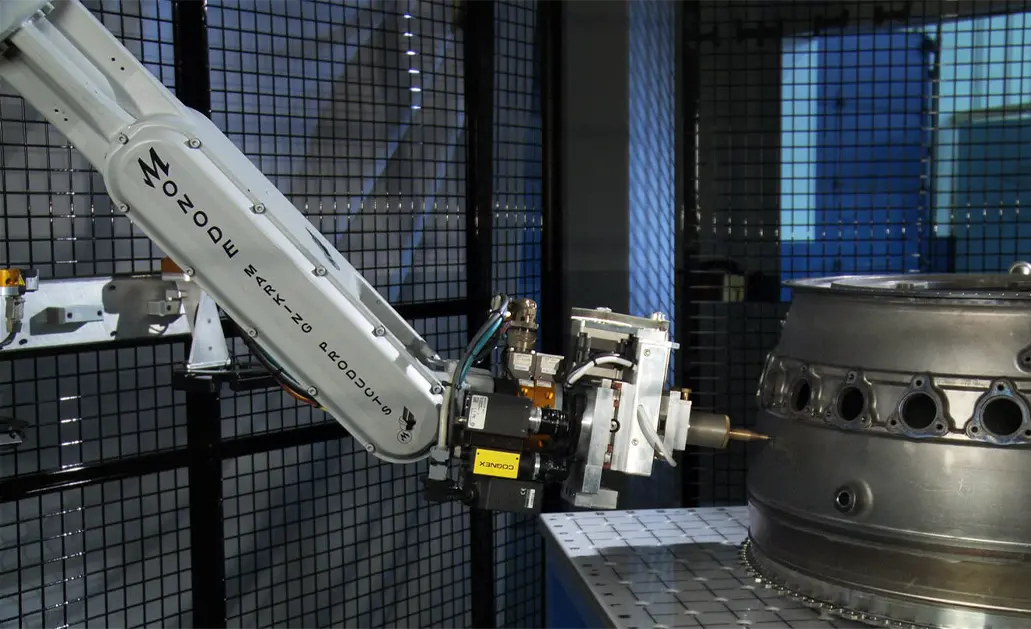

Monode robotic arm marking a metal engine component inside a safety cage

▪ Need a form factor that doesn't exist off the shelf?

We'll build it.

Dot peen runs through our Design-to-Order service too, including the flip cart, one of our best-selling design-to-order products.

Explore Design-to-Order Services

Criteria	Dot Peen	Electrochemical Etch	Laser	Steel Stamp	Scribe
Contact with part	Impact (pin strike)	Stencil contact, no impact	Non-contact	Impact (struck)	Continuous contact, no impact
Heat-affected zone	None	None	Yes (pulsed mode)	None	None
Typical mark depth	Shallow to deep, dot-matrix (pneumatic reaches deeper)	.0001" (shallow) to .003"+ (deep)	Surface to shallow	Deepest of the five	Shallow, depth varies with stylus pressure
Speed	Fast	Under 1 sec (shallow)	Fast	Single strike	Continuous, speed scales with line length
Stress-fracture risk to part	Low	Very low	Very low to high, depends on settings	Higher on hardened/thin material	Low to medium
Common substrates	Most metals, some plastics	Most metals, incl. exotic alloys	Most metals, some plastics	Metals suited to impact	Most metals, depending on hardness
Medical/implant compatibility	Not typical	Strong (no surface craters)	Depends on mode	Not typical	Not typical
Best fit	General-purpose permanent marking	Precision marks on aerospace, medical, and exotic-alloy parts; also general-purpose marking for hand tools and knives	High-speed, non-contact, serialized marking	Deepest, most permanent mark on suitable metals	Parts marked before painting or powder coating; quiet, low-vibration environments

▪ Frequently Asked Questions

Dot Peen Marking FAQ

Talk to an engineer about which line and form factor fit your part.

Talk to an Engineer

Request a Free Test Mark
