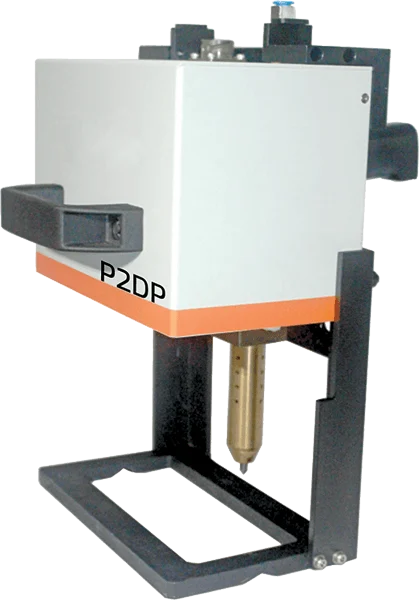

P2DP Portable Pneumatic Marker

Rugged, air-powered, built to hold steady.

The P2DP is a pneumatic portable marker for shops already running compressed air — paired with the C2 Controller for a reliable, no-frills marking setup with military-grade connections throughout.

Add to Quote
Download Spec Sheet
Request a Free Test Mark

Key Features:

  • Pneumatic operation, 6-8 bar air pressure, PU8 (8mm OD) tubing
  • High-precision LM guides on both X and Y axis, 2-axis standard
  • Robust aluminum body, 5kg
  • 16-pin military-grade connector, 6m standard cable
  • Front supporting handle and rear combo handle for manual holding or standing
  • Flat fixture with V-groove and rectangular permanent magnets for holding on the component
  • Customizable component holding/resting attachments
  • Optional combo attachment with CF01 holding stand for tabletop conversion

C2 Controller (pneumatic version) Features:

  • 7″ resistive touch screen, strong steel construction
  • Standard 2-axis, upgradable to 3 or 4 axis
  • RS232 and RS485 ports for PC/PLC communication
  • CSV file marking and barcode printer interface
  • High-speed fan; USB port for file transfer
  • 110-240V AC power supply, 24V 5A consumption
  • 185mm x 285mm x 112.5mm, 3kg

Good For: Shops with existing compressed air infrastructure · Rugged/industrial handheld marking · Component-mounted marking with magnetic holding · Upgradeable axis requirements
