B-2045 Bench Fixture (2" x 4½")
Precision positioning, sized for larger parts.
A 2″ x 4½” bench fixture that works with any Monode power unit, supporting both hand marking and semi-automatic setups. Choose Roll Marking for cylindrical parts, or Part Locating for consistent, repeatable registration.
Marking Style Selector:

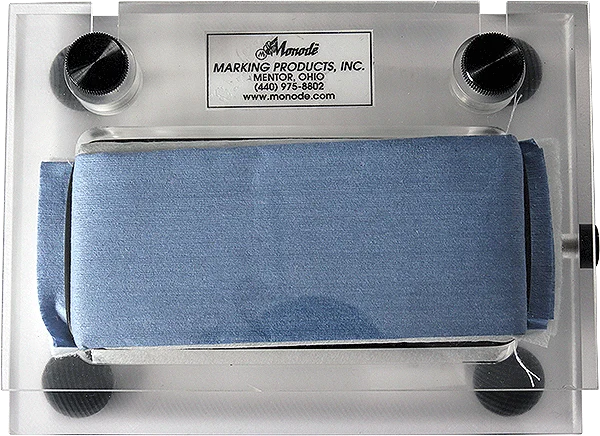

- Roll Marking — marks the outside diameter of cylindrical parts by rolling the part over the stencil; the stencil sits on a pad using wicking action from a built-in electrolytic reservoir
- Part Locating — uses a nonconductive, machined top piece to locate the part over the stencil for consistent, repeatable positioning
Base Fixture Options:
| Part Number | Description | Includes |
|---|---|---|
| B-2045 | Bench Fixture, 2″ x 4½” (Roll Marking) | Monode top plate, 1 Monodepad, O-ring |
| B-2045L | Bench Fixture, 2″ x 4½” (Part Locating) | Locating assembly (B-2045-9), Monode top plate, 1 Monodepad, O-ring |
Compatible Top Plates:
| Part Number | Description |
|---|---|
| B2045-1 | Flat top plate, 2″ x 4½” x ½” |
| B2045-1R | Special high flat riser blank, 2″ x 4½” x 1″ |
| B2045-1RA | Contoured top plate, for diameters 1/8″–1/4″ |
| B2045-RB | Contoured top plate, for diameters 5/16″–1/2″ |
| B2045-RC | Contoured top plate, for diameters 9/16″–3/4″ |
| B2045-RD | Contoured top plate, for diameters 13/16″–1″ |
Convex and special contoured top plates available on request (send drawing or part).
Compatible Accessories/Parts:
| Part Number | Description |
|---|---|
| B2045-3 | Monodepads, 5-pack (B-2045-1 top plate option) |
| B2045-3R | Monodepads, 5-pack (B-2045-1R top plate option) |
| B2045-6 | Stencil cleaning heads (HM50150 & H100 holder) |
| B2045-7 | Stencil cleaning head pads (pkg. of 10) |
| B2045-8 | Plastic locating plate blank, 4″ x 6″ |
| B2045-9 | Plastic locating plate blank assembly with riser blocks |
| B2045-11 | Absorbent wick, 4″ x 4½” |
| Well Plate Assembly | Carbon block, rubber gaskets, s.s. receptacle bolt (also fits B-1220) |
| HG | Hand ground, with cord and banana plug (also fits B-1220) |
| Oring5 | #5 O-rings |
| Ground Strap | Ground strap |
Good For: Larger-part cylindrical marking (Roll Marking) · Repeatable registration on larger components (Part Locating) · Custom-diameter marking up to 1″ (contoured top plates)
