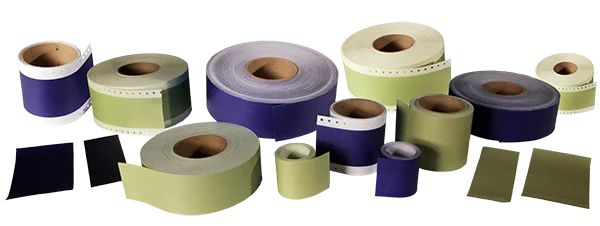

Etching Stencil Paper

Field-typeable stencils, produced in-house for 60+ years.

Stencil paper formulated to accept typing or printing directly in the field — ideal for variable data like serial numbers. Choose Die-Impression for trademark/repetitive data with a typewriter or hand marker, or Tractor-Fed Heavy Duty for printer-fed shallow and some deep etch applications. Produced in-house at Monode for over 60 years.

Add to Quote
Paper Size Die-Impression: Blue (DIB)* Die-Impression: Green (DIG)* Tractor-Fed Heavy Duty: Blue (TFB)* Tractor-Fed Heavy Duty: Green (TFG)*
2-1/2" X 7" (27) Box available available
3-3/4" X 7" (37) Box available available
2-1/2" X 20' (220) available available available available
2-1/2" X 100' (2100) available available available available
2-1/2" X 200' (2200) available available available available
2-1/2" X 300' (2300) available available available available
2-1/2" X 400' (2400) available available available available
2-1/2" X 500' (2500) available available available available
2-1/2" X 600' (2600) available available available available
3-3/4" X 20' (320) available available available available
3-3/4" X 100' (3100) available available available available
3-3/4" X 200' (3200) available available available available
3-3/4" X 300' (3300) available available available available
3-3/4" X 400' (3400) available available available available
3-3/4" X 500' (3500) available available available available
3-3/4" X 600' (3600) available available available available
6" X 20' (620) available available
6" X 100' (6100) available available
6" X 200' (6200) available available
6" X 300' (6300) available available
6" X 400' (6400) available available
6" X 500' (6500) available available
6" X 600' (6600) available available

Type Selector:

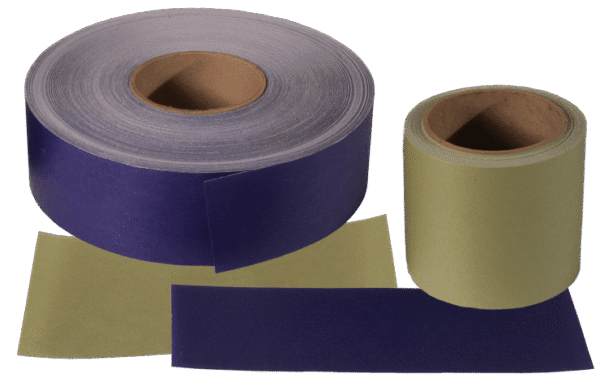

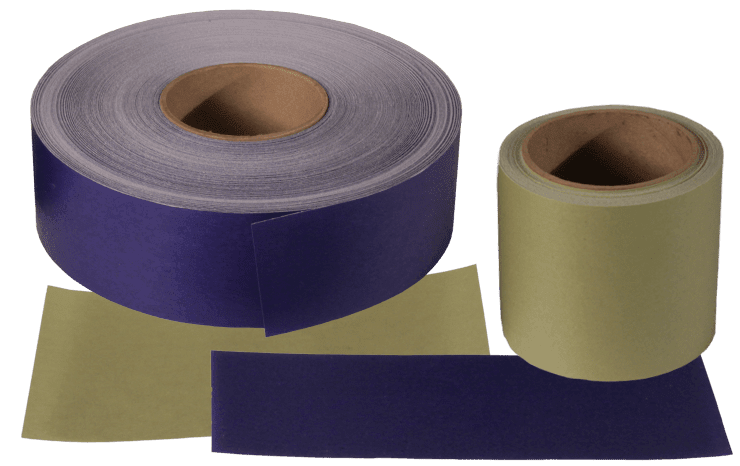

  • Die-Impression: Blue (DIB) — allows stencils with trademark or other repetitive data; space at convenient increments for extra information; available with or without logos; available in rolls or boxes of 100 flat sheets
  • Die-Impression: Green (DIG) — same construction and use case as DIB, in green

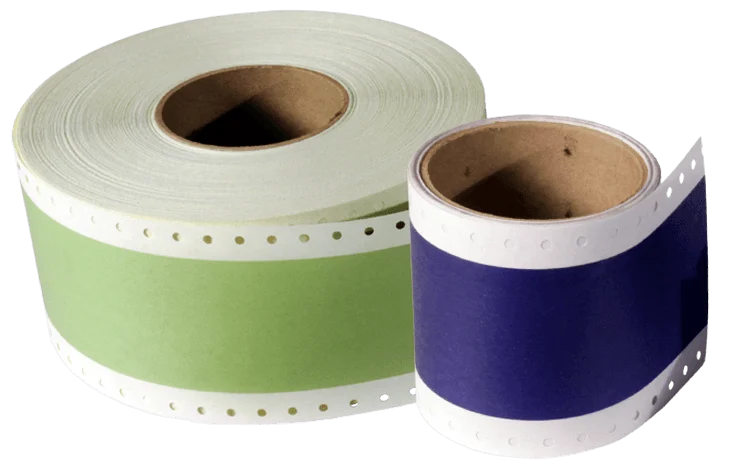

  • Tractor-Fed Heavy Duty: Blue (TFB) — heavy duty; usable for shallow etch and some deep etch applications; printer-fed
  • Tractor-Fed Heavy Duty: Green (TFG) — same construction and use case as TFB, in green

Use With: Die-Impression pairs with a hand marker or typewriter for direct field typing; Tractor-Fed Heavy Duty is designed for printer feed.

Ordering Note: Order using the type initials (DIB, TFG, etc.) followed by the size code (220, 3400, etc.) — e.g., a 2″ x 100′ roll of blue Die-Impression paper is DIB2200.

Standard Stock Sizes by Type:

Size (Width x Length) Code DIB DIG TFB TFG
2½” x 7″ (flat sheet) 27 ✓ ✓
3¾” x 7″ (flat sheet) 37 ✓ ✓
2½” x 20′ 220 ✓ ✓ ✓ ✓
2½” x 100′ 2100 ✓ ✓ ✓ ✓
2½” x 200′ 2200 ✓ ✓ ✓ ✓
2½” x 300′ 2300 ✓ ✓ ✓ ✓
2½” x 400′ 2400 ✓ ✓ ✓ ✓
2½” x 500′ 2500 ✓ ✓ ✓ ✓
2½” x 600′ 2600 ✓ ✓ ✓ ✓
3¾” x 20′ 320 ✓ ✓ ✓ ✓
3¾” x 100′ 3100 ✓ ✓ ✓ ✓
3¾” x 200′ 3200 ✓ ✓ ✓ ✓
3¾” x 300′ 3300 ✓ ✓ ✓ ✓
3¾” x 400′ 3400 ✓ ✓ ✓ ✓
3¾” x 500′ 3500 ✓ ✓ ✓ ✓
3¾” x 600′ 3600 ✓ ✓ ✓ ✓
6″ x 20′ 620 ✓ ✓
6″ x 100′ 6100 ✓ ✓
6″ x 200′ 6200 ✓ ✓
6″ x 300′ 6300 ✓ ✓
6″ x 400′ 6400 ✓ ✓
6″ x 500′ 6500 ✓ ✓
6″ x 600′ 6600 ✓ ✓

Additional sizes available upon request beyond the standard chart above.

Good For: Field-typed variable data (serial numbers, part numbers) · Repetitive trademark/logo stencils (Die-Impression) · Shallow-to-deep etch production runs (Tractor-Fed Heavy Duty) · High-volume roll-fed operations
