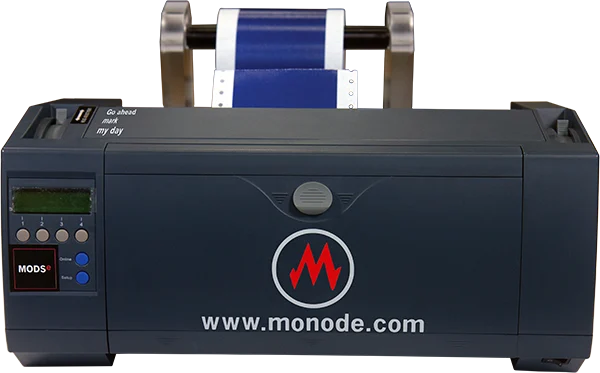

Monode industrial label printer with continuous blue and white tags loaded on top

MODSe Stencil Cutting System

Custom stencils, cut on demand.

Spec 2000
MIL-STD-130
DoD UID

The MODSe pairs a rugged pin printer with Traceable-IT-T1 E software to cut custom electrochemical etch stencils in-house — built for shops that need serialized, compliant marking without waiting on pre-made stencils.

Add to Quote
Download Spec Sheet
Request a Free Test Mark

Key Features:

  • USB-connected pin printer with tractor-feed
  • Handles Monode stencil paper in 2½”, 3¾”, and 6″ widths
  • 400 million character printhead life; Energy Star compliant
  • Adjustable stencil length and copy count per job
  • Optional radial marking software and bitmap logo import
  • Traceable-IT-T1 E software: project designer, user/security management, certified reports, and operator logging
  • Character sizes adjustable from .060″ to 3.0″ in .001″ increments, with kerning and spacing control
  • Built-in serial number and date code functions
  • 2D Data Matrix symbology support

Good For: Electrochemical etch stencil production · Serialized/traceable part marking · Shops needing in-house stencil turnaround · Compliance-driven marking programs
