MC Direct Part Mark Modular Verification Station

AIM-Compliant Direct Part Mark & 2D Matrix Modular Verification System

An industry-standard direct part mark (DPM) verification station featuring click-in modular lighting options, AIM compliance, and automated software configuration for 2D DataMatrix and UID quality inspection.

Add to Quote
Download Spec Sheet
Request a Free Test Mark

Monode’s innovative verifier has become an industry standard for direct part mark (DPM) and 2D matrix verification. Engineered to satisfy strict AIM DPM and ISO 15434 syntax standards, the station features modular lighting attachments that simply click into place and are immediately recognized by patented software—requiring zero operator adjustment as the system automatically configures itself.

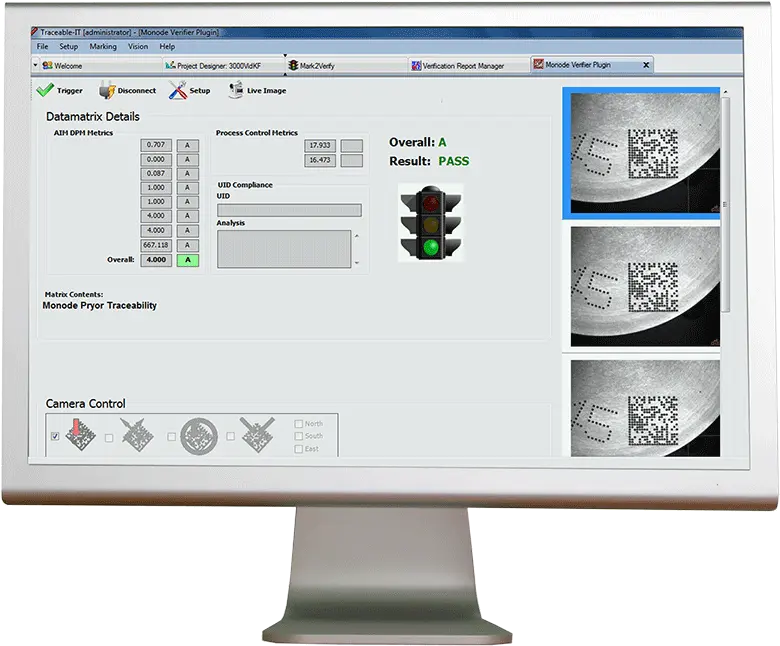

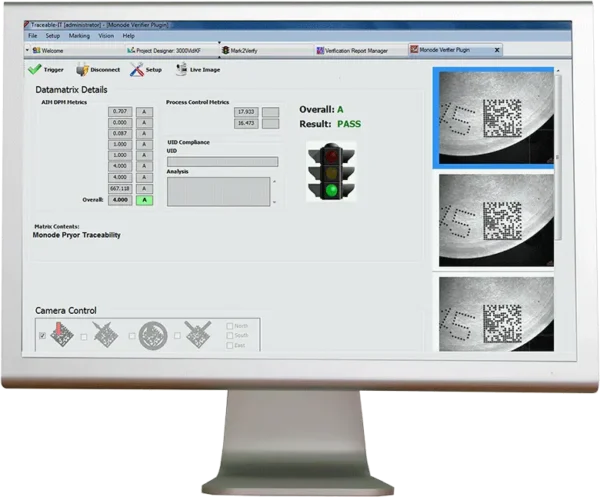

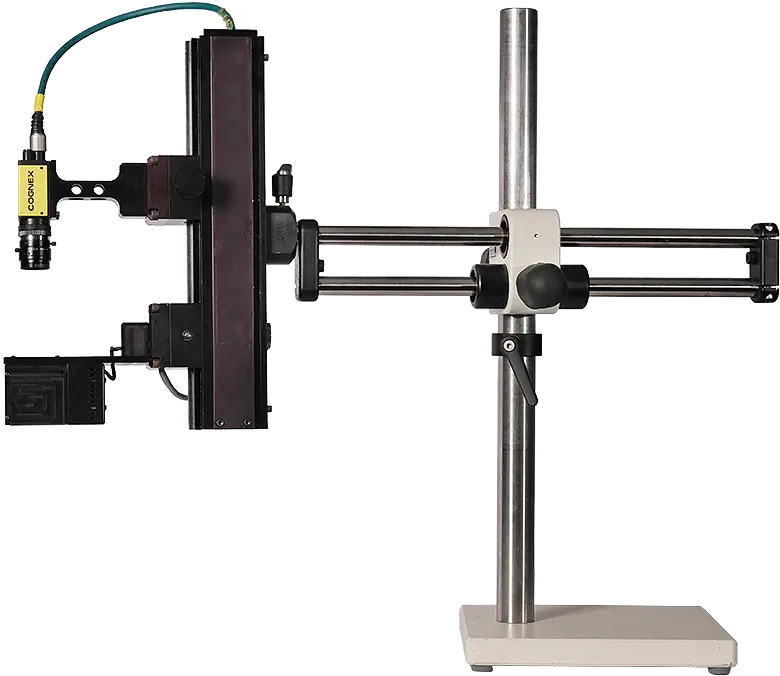

The system features an easily adjustable boom stand (or standard work column with rack and gear design) that enables precise positioning across a wide variety of part shapes, sizes, angled edges, and stepped surfaces. Powered by TRACEABLE-IT Direct Part Mark Verifier Application Software, it provides complete mark quality analysis, real-time data logging, and mark quality report generation.

Key Features & Capabilities

  • AIM Compliant & ISO 15434 Support: Designed for high-accuracy 2D, DataMatrix, and UID verification.

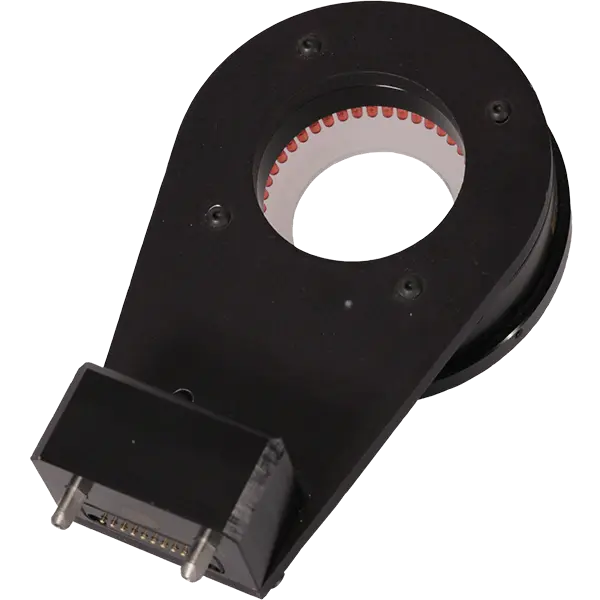

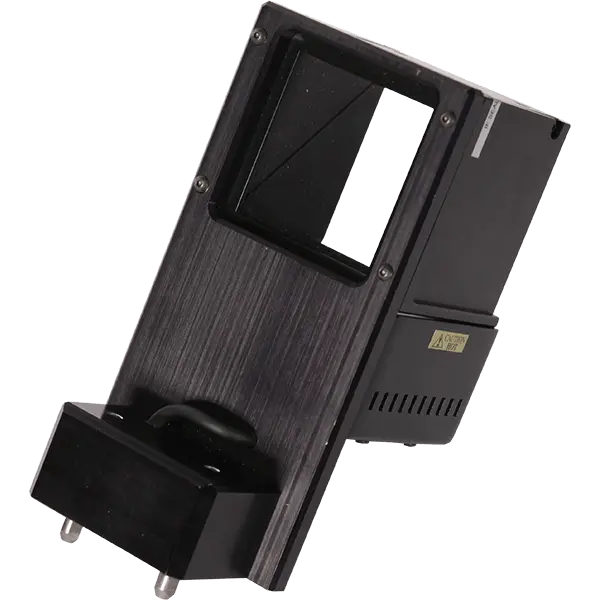

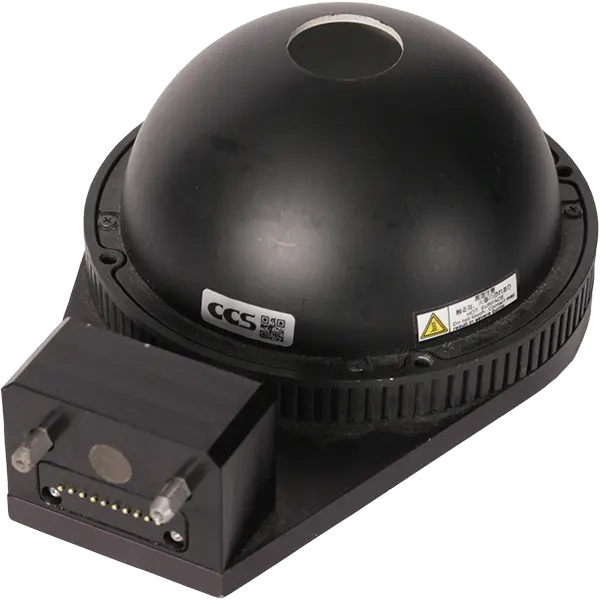

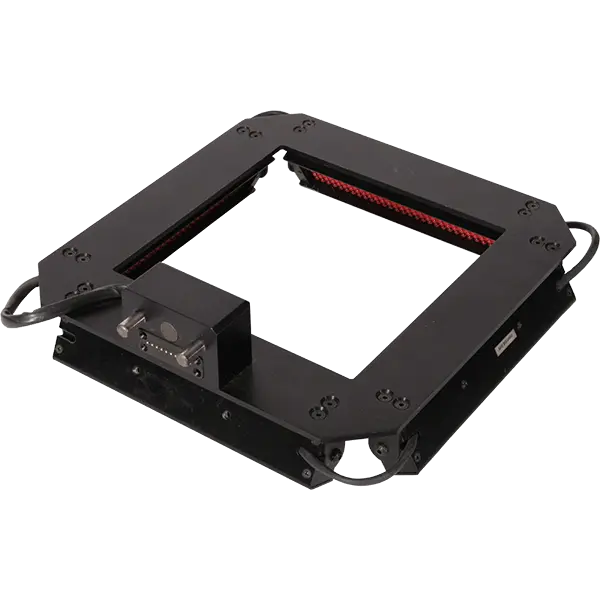

  • Modular Click-In Lighting: Interchangeable 90°, Ring, Dome, and Quad lights with automatic software recognition.
  • High-Speed Performance: Highest speed model delivering a 2.5X performance rating.
  • Comprehensive Software Suite: Includes graphical user interface, 1D code (barcode), 2D DataMatrix, OCR/OCV vision tools, data logging, and automated report generation.
  • Flexible Mounting Options: Standard 11″ x 13″ part base or optional Ball Bearing Boom Stand for complex, large-scale aerospace parts.
