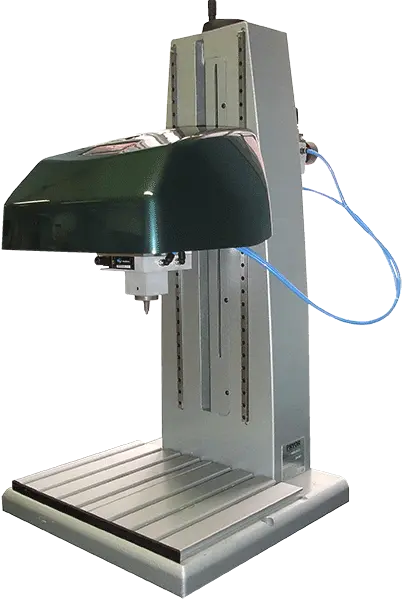

High Volume / High Throughput Column Mounted Scribe Marker

Column mounted scribe markers are highly versatile systems designed to adapt easily to a wide variety of industrial marking applications. Engineered as diamond dragging systems, these units are built to withstand the demands and rigors of modern manufacturing environments and can be expanded using optional accessories. Monode provides complete turnkey solutions tailored to specific scribe marking needs.

The High Volume / High Throughput models feature manual or powered Z-axis configurations and light or medium duty scribe attachments. They are available in four standard marking sizes (60 x 60 mm, 100 x 100 mm, 150 x 150 mm, and 300 x 150 mm). Operating with extremely low noise, these machines utilize pneumatic scribing to deliver continuous, high-quality marks across materials ranging from plastics to hardened steel.

Key Features & Capabilities

• Pneumatic scribing system generating high-quality continuous-style marks
• Extreme low-noise operation
• Diamond-tipped or tungsten carbide stylus (110°)
• Integrated 4000 Embedded Controller with a 10.4″ resistive touchscreen interface
• Memory storage for up to 1,350 marking programs
• Multiple connectivity options including RS232, USB-A, USB-B, Digital I/O, Ethernet, and Anybus
• Advanced standard programming capabilities including serial numbering, arc marking, time/date coding, logos, and Data Matrix
• PC integration option using Traceable-IT™ graphical software

Applications

Suitable for component identification, component traceability, serial numbering, logo marking, security marking, health & safety compliance, certification marking, trophy & award marking, batch & shift coding, calibration systems, and label/tag marking.
