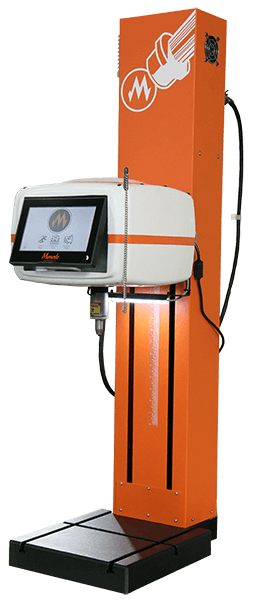

An orange and white industrial testing machine with a digital touch screen control panel and a flat black base

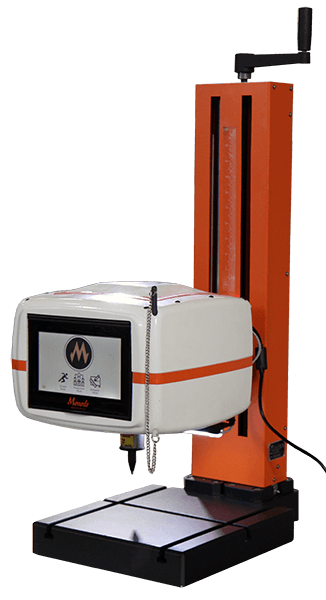

Benchtop dot peen marking machine with an orange column, manual hand crank, and touch screen interface

D2 Touch Series

Built to grow with your marking needs.

Portable

The D2 Touch Series pairs rugged, linear-rail construction with a feature-packed touch interface — and it’s built to scale. Start with the D2 Touch and upgrade to 3-axis, or step up to the D2 Touch Plus for a 3-axis system with electric Z-axis auto-height adjustment, upgradable to 4-axis.

Add to Quote
Download Spec Sheet
Request a Free Test Mark

Key Features:

  • Robust construction with high-capacity motors and linear guide rails for deeper markings
  • 120mm x 100mm marking window, 400mm column
  • 7″ ErgoTilt touch screen with stylus, viewable standing or seated
  • Unlimited design storage; marks DXF, HPGL, and PLT files for logos
  • QR code and Datamatrix marking at no extra cost
  • Date-based code marking with multiple counter/reset options
  • 1–9 force codes for adjustable marking depth per block
  • CSV file / database marking, direct output to barcode printers
  • RS232 serial and Modbus RTU (RS485) for PLC/SCADA — EtherCAT/ProfiNET-ready with converters
  • Password-protected designs with production mode
  • Automatic marking log for traceability
  • Multilingual interface (22 languages)
