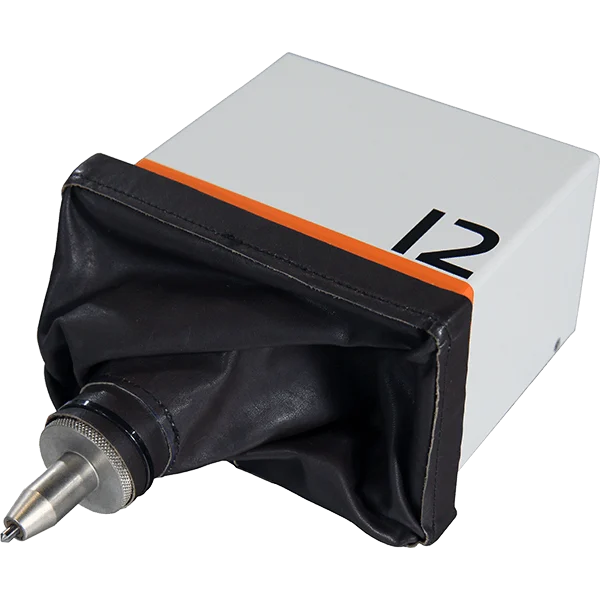

White rectangular device labeled "12" with an orange stripe, featuring a black bellows gaiter and a metallic probe extending from the front

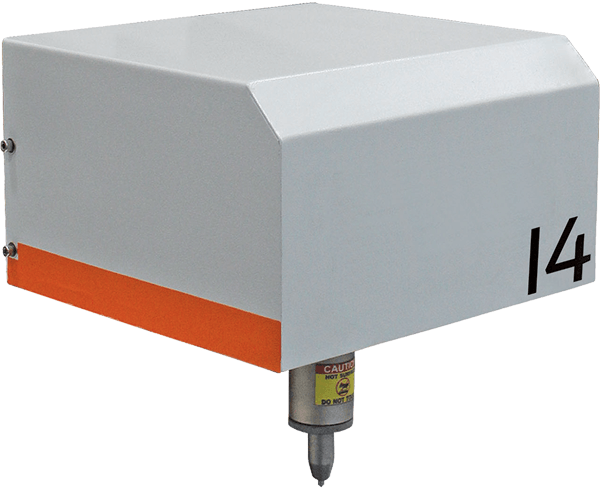

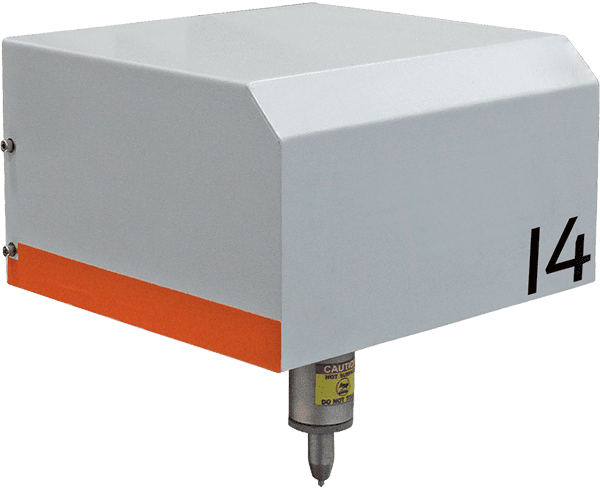

Grey industrial protective housing labeled 14 with an orange stripe, enclosing a dispensing nozzle with a caution label

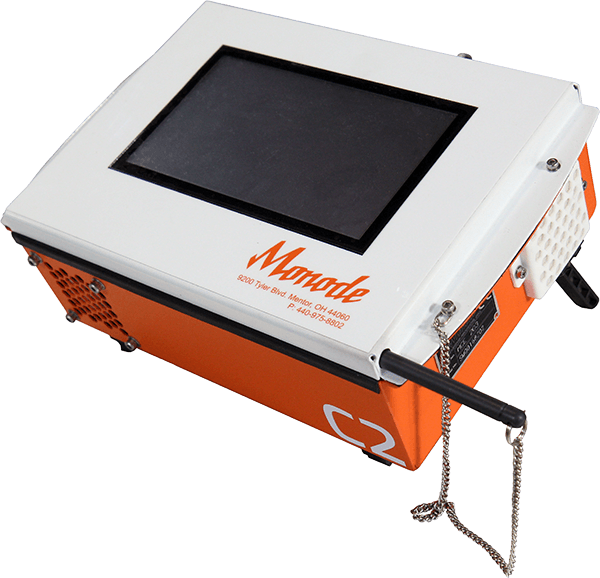

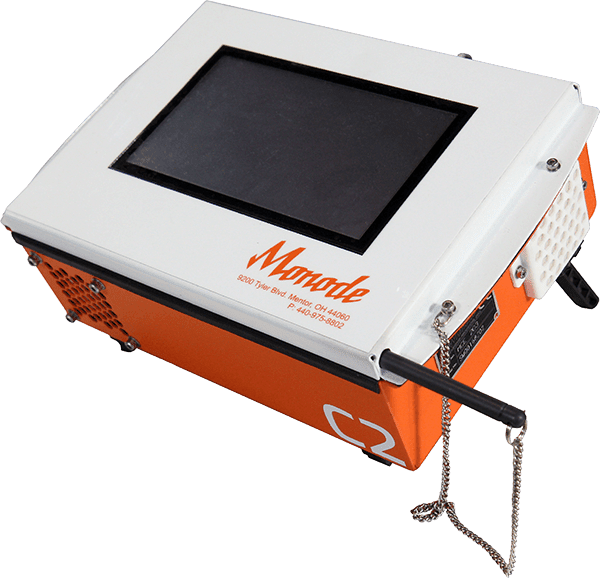

Monode C2 marking controller with touch screen display and stylus

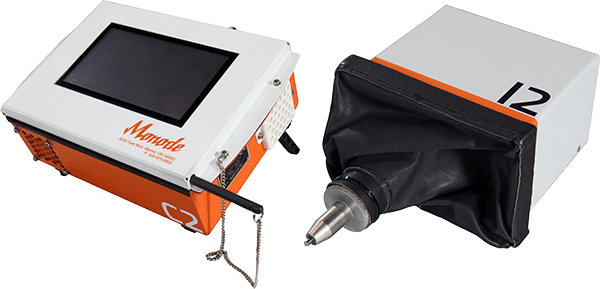

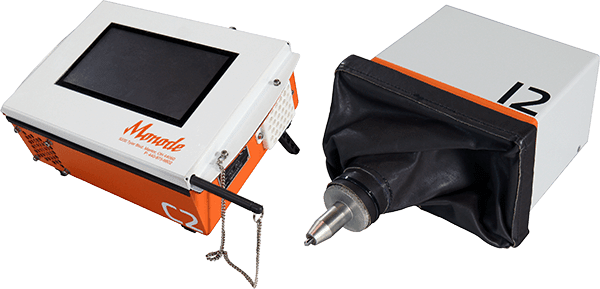

Monode C2 control unit with touchscreen display and accompanying I2 marking head

MI Integration Marking Head

Built into your line, not bolted onto it.

Compact dot peen marking heads designed to mount directly onto automation equipment — rugged aluminum construction in a small enough form factor to fit where a standalone marker can’t, with the same controller flexibility as Monode’s other systems.

Add to Quote
Download Spec Sheet
Request a Free Test Mark

Key Features:

  • Compact marking heads for easy placement and approach on automation devices
  • Mounts with 4 M8 screws for secure, safe integration
  • Rugged aluminum construction for industrial environments
  • Linear X & Y axis for consistent depth across the full marking window
  • Small heads available with Rexin bellows for dust/ingress protection
  • Multiple stylus assemblies to choose from by application
  • Military-grade secure connection to the controller
  • Connecting cables available in multiple lengths to suit mounting location
  • Optional holding stands for tabletop working outside the automation line

Paired Controller — C2 (Pneumatic or Electric):

  • Strong steel construction, 7″ resistive touch screen for industrial use
  • Mount as tabletop, wall-mounted, or panel-mounted
  • Jog feature for precise tool positioning relative to the workpiece
  • Marks alphanumeric text, DXF/PLT logos, Datamatrix, and QR codes
  • CSV file marking, barcode printer interface, marking log for tracking
  • RS232 (ASCII & Modbus RTU/RS485) for PLC/SCADA — EtherCAT/ProfiNET-ready with converters
  • Password-protected designs with production mode
  • Screw-type military-grade connectors for secure connection
  • Multilingual interface (22 languages)
  • USB port for file transfer

Good For: OEM/automation line integration · Compact-footprint mounting requirements · PLC/SCADA-integrated production lines · Multi-model flexibility on a single controller platform

Related Products

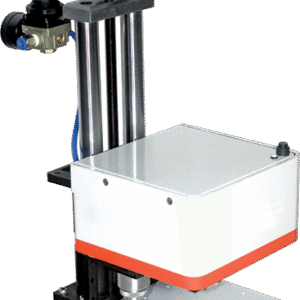

Simple Marker Image
