Hand Markers Pads
The pad is the reservoir: it holds and supplies the electrolyte that keeps current flowing between the marker and the part. We provide businesses with etching pages in 10 standard head sizes, four pad types, ordered by a simple code.
How to Choose

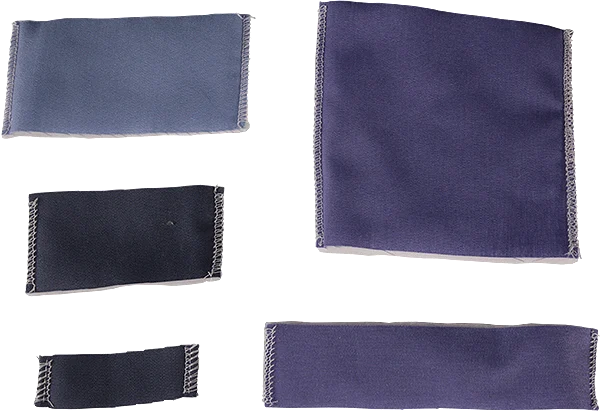

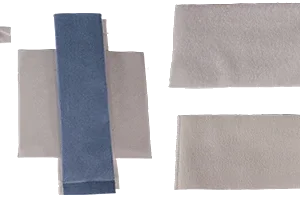

Etching Pads
Monode provides a range of etching pads to help address your specific marking needs.
M-Series Pads
are the standard choice for general hand marking.
Deep Etch (DE) Pads
are built differently on purpose: they're a fibrous material that, under slight pressure, pushes through the stencil's image area, keeping current flowing freely to the part. That pad has to stay saturated with electrolyte at all times, since a dry pad breaks the current path, lets the stencil overheat, and shortens its working life.
Screen Cloth (SC) Pads
pair with our legacy SC Hand Markers to support older equipment or preferences for older screen-style approaches.
Rocker (RP) Pads
are sized specifically for the two rocker-marker head sizes we offer, 2" x 2" and 2" x 4".
| Fits Head Size | "M" Series Pads 10 Pack (Designed to Fit: HM • SH • CM) | "DE" Deep Etch Pads 10 Pack (Designed to Fit: HM • SH • CM) | "SC" Screen Cloths 10 Pack (Designed to Fit: SCHM) | "RP" Rocker Pads 3 Pack (Designed to Fit: RP) |
|---|---|---|---|---|
| 1/4" X 3/4" (2575) | ✓ | ✓ | ✓ | |
| 1/4" X 1-1/4" (25125) | ✓ | ✓ | ✓ | |
| 1/4" X 1-1/2" (25150) | ✓ | ✓ | ✓ | |
| 1/2" X 1-1/2" (50150) | ✓ | ✓ | ✓ | |
| 1/2" X 2" (50200) | ✓ | ✓ | ✓ | |
| 5/8" X 1-1/2" (62150) | ✓ | ✓ | ✓ | |
| 3/4" X 1-3/4" (75175) | ✓ | ✓ | ✓ | |
| 1" X 2" (1020) | ✓ | ✓ | ✓ | |
| 1-1/2" X 2-1/2" (1525) | ✓ | ✓ | ✓ | |
| 2" X 2" (2020) | ✓ | ✓ | ||
| 2" X 4" (2040) | ✓ | ✓ |
✓ available
▪ Frequently Asked Questions
Etching Pads FAQs
Related Products
AM30T Fully Automatic Turntable Marking Machine
Our AM30T is fully automatic for marking high production items and is capable of etching up to 1800 cycles per hour. Designed to work with neutralizing and oiling conveying systems, an automatic feeding unit can be added to eliminate operator loading.
An optional AM30T Rotary Table for higher throughput is sold separately.
MODSe Stencil Cutting System
The MODSe pairs a rugged pin printer with Traceable-IT-T1 E software to cut custom electrochemical etch stencils in-house — built for shops that need serialized, compliant marking without waiting on pre-made stencils.
M-311E Deep Etch Power Unit
A higher-power unit built for deep etching — capable of marking more than 0.006″ into most substrates using Monode’s low-stress deep marking process.
