Hand Markers
The right marker for every stencil size.
Monode’s core hand marker line — available in a wide range of standard sizes, or machined at custom angles and contours to reach difficult marking locations. Ideally sized larger than the image being marked but smaller than the stencil, for a clean single-pressure mark.
| Marker | Hand Marker (HM) | Solid Handle Hand (SH) | Cartridge Marker (CM) | SC Hand Markers | Rocker Markers (RP) |
|---|---|---|---|---|---|
| ¼" x ¾" (2575) | ✓ | ✓ | |||
| ¼" x 1-¼" (25125) | ✓ | ✓ | ✓ | ||
| ¼" x 1-½" (25150) | ✓ | ✓ | |||
| ½" x 1-½" (50150) | ✓ | ✓ | ✓ | ||
| ½" x 2" (50200) | ✓ | ✓ | ✓ | ✓ | |
| ⅝" x 1-½" (62150) | ✓ | ✓ | |||
| ¾" x 1-¾" (75175) | ✓ | ✓ | ✓ | ✓ | |
| 1" x 2" (1020) | ✓ | ✓ | ✓ | ||
| 1-½" x 2-½" (1525) | ✓ | ✓ | ✓ | ||
| 2" x 2" (2020) | ✓ | ||||
| 2" x 4" (2040) | ✓ |
Type Selector:

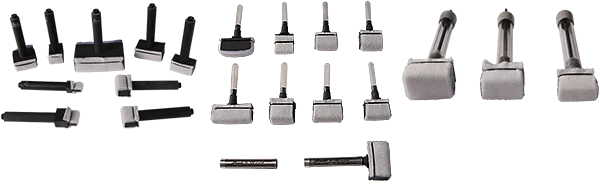

- Hand Markers (HM) — standard general-purpose hand marker
- Solid Hand Markers (SH) — solid construction variant
- Cartridge Markers (CM) — cartridge-style

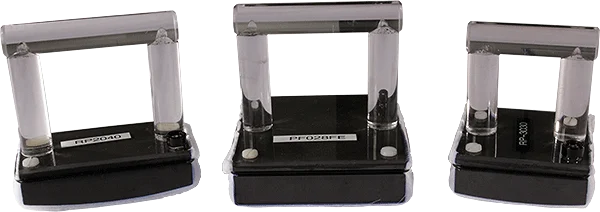

- Rocker Markers (RP) — rocking-motion marking, often used for grid marking and larger stencil layouts (allows etch byproduct gases/vapor to escape for uniform contrast)

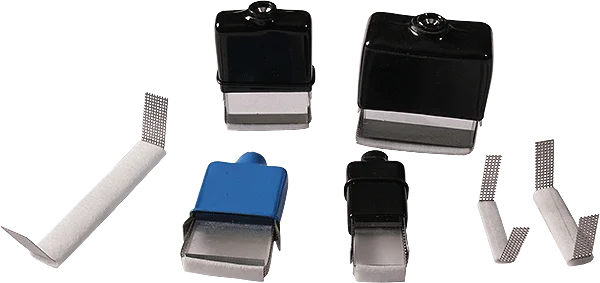

- SC Hand Markers — legacy-style, screen-style pads, easy to control
Key Features:

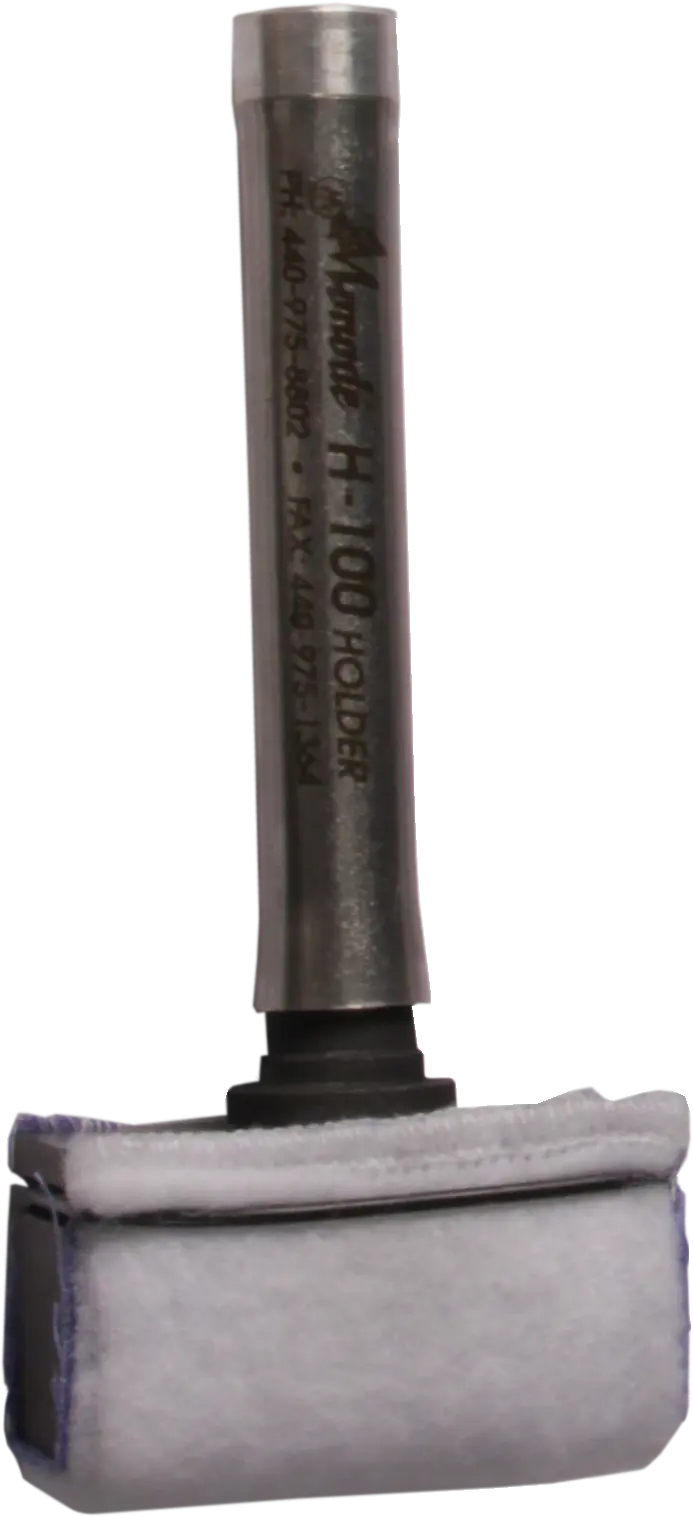

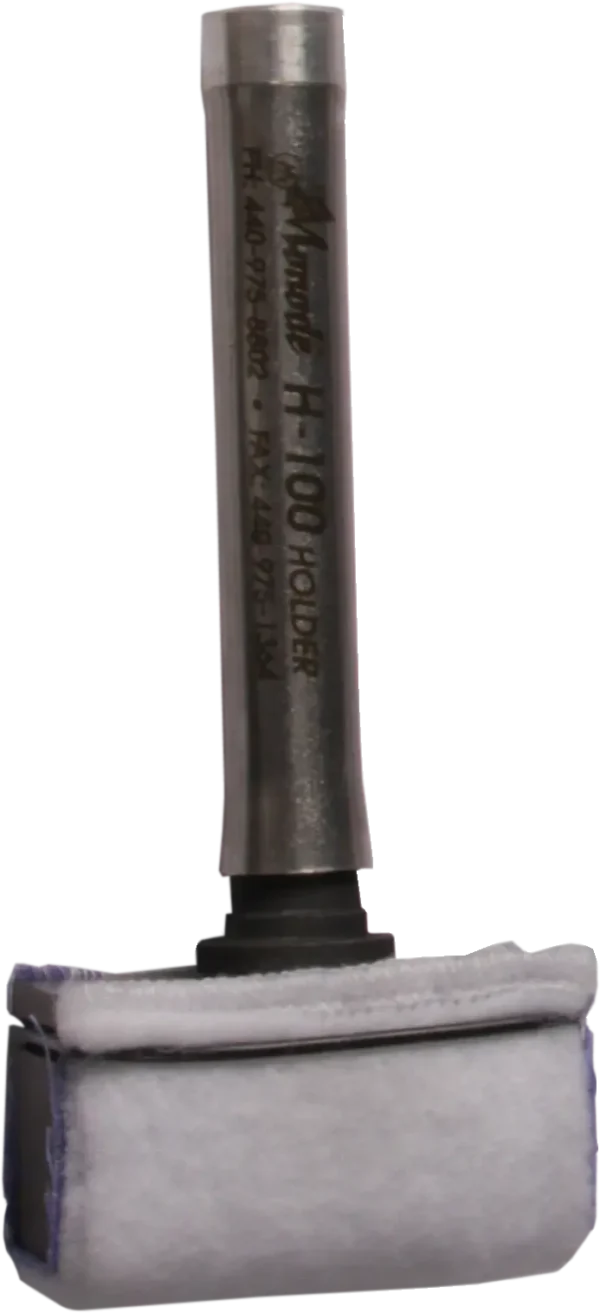

- Must be used with the H-100 holder (sold separately)
- Wide range of standard sizes; custom angles/contours available
- Marker sized larger than the marked image but smaller than the stencil, for clean single-application marks
Ordering Note: Use the marker type initials (HM, SH, etc.) followed by the size code (e.g., a ½” x 1½” hand marker is HM50150). Non-standard and contour markers available for quote.
Good For: General-purpose hand marking · Grid marking and larger stencil layouts (Rocker Markers) · Legacy screen-pad workflows (SC Hand Markers)
