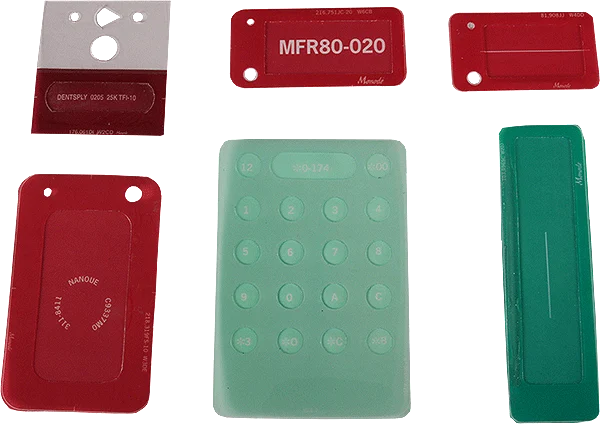

Insert Stencils
Built for repeatable registration on automated marking machines.
Designed for use with Monode’s automatic marking machines — reinforced with a heavy-duty flexible frame for easy handling and polarized locating holes for consistent re-registration onto marking fixtures every time.
| Insert Size | Inside Area | Outer Size | Uses Holder |
|---|---|---|---|
| 1A | 1-1/2" X 2-5/8" | 1-1/2" X 2-5/8" | 1A-H |
| 1-1/2A | 1-1/2" X 3-1/8" | 1-1/2" X 3-1/8" | 1-1/2A-H |
| 1-3/4A | 1-1/2" X 3-5/8" | 1-1/2" X 3-5/8" | 1-3/4A-H |
| 2A | 2-1/2" X 4" | 2-1/2" X 4" | 2A-H |
| 3A | 3-1/2" X 4" | 3-1/2" X 4" | 3A-H |
| 4A | 4-1/2" X 5" | 4-1/2" X 5" | 4A-H |
| 5A | 5-1/2" X 7" | 5-1/2" X 7" | 5A-H |
| 6A | 7-5/8" X 7-7/8" | 7-5/8" X 7-7/8" | 5A-H |
| 7A | 10" X 10-1/2" | 10" X 10-1/2" | 5A-H |
| 1B | 1-1/2" X 5-5/8" | 1-1/2" X 5-5/8" | 1A-H |
Key Features:
- Heavy-duty flexible frame for easy handling
- Polarized locating holes for consistent re-registration
- Built for automated/semi-automated marking machine use
Good For: Automated marking setups needing repeatable stencil placement · Production-line electrochemical etching
