Bench Laser

Bench Laser

A fast, versatile benchtop laser engraver built in Britain for high-volume, high-variety marking.

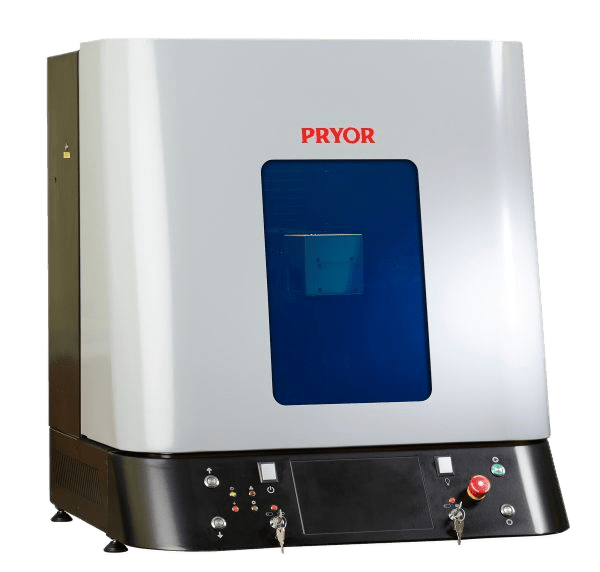

The Bench Laser is Pryor’s benchtop marking system, distributed through Monode for customers who need fast, precise laser engraving across a wide range of materials — from metals and alloys to hard plastics. Non-contact and permanent, it’s built for shops that run high-mix production without sacrificing speed. It ships with Pryor’s Traceable-IT software and is available in 20W, 20W Pro, and 50W configurations.

Add to Quote
Download Spec Sheet
Request a Free Test Mark

Key Features

  • Non-contact, permanent marking
  • Automatic vertical opening door, standard across the bench-top range
  • Large internal working envelope for bigger parts
  • Automatic Z-axis for focusing/defocusing on the target component
  • Large laser-safe viewing window
  • Visible “Pilot” beam for fast, accurate mark placement, plus a secondary “focus finder” beam confirming focus
  • Integrated touch screen controls (4000 controller interface); optional PC interface via Traceable-IT for advanced programming
  • Diode life exceeding 50,000 hours; maintenance-free marking with no consumable costs
  • Wide operating temperature range: 0–42°C
  • Class 1 laser enclosure, made in Britain
  • Also available as an integration package for automated part-marking tasks

Good For

  • High-volume, high-variety marking
  • Programmable marking
  • Component identification and traceability
  • Serial numbering and logo marking
  • Security marking
  • Health & safety appliance marking
  • Certification marking
  • Decorative trophy & award marking
  • Time & date marking, batch & shift coding
  • Label & tag marking
Spec 20W 20W Pro 50W
Pulse Energy 1mJ 1mJ 1mJ
Average Power 20W 20W 50W
M² 1.6 1.6 1.6
Polarization Random Random Random
Power Tunability 5–100% 5–100% 5–100%
Pulse Duration (at 20KHz) 100ns 4, 8, 14, 20, 30, 50, 100 & 200ns 120ns
Repetition Rate 20 KHz–200 KHz 1.6 KHz–1000 KHz 50 KHz–200 KHz
Long Term Power Stability 1–3% 1–3% 1–3%

Options / Accessories

  • Touchscreen controller upgrade
  • PC interface with Traceable-IT for advanced programming
  • Integration package configuration (for automated part-marking cells)
