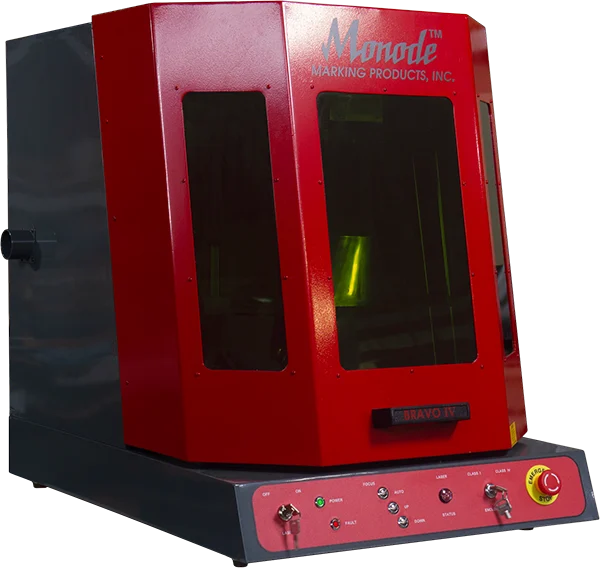

Monode Bravo IV laser marking machine with a red and dark gray enclosure and control panel

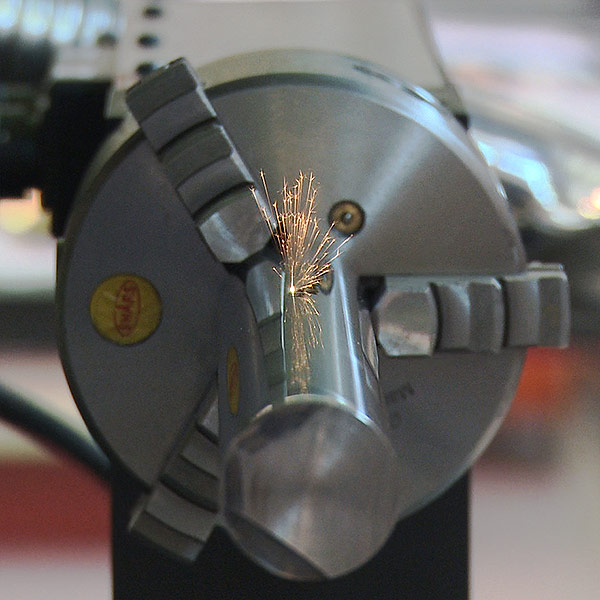

Sparks fly as a laser cuts a metal cylinder secured in a lathe chuck

Vestige™ Bravo IV Tabletop Laser Marking System

A 20-watt enclosed laser built for shop-floor identification, from serial numbers to security marks.

The Bravo IV is Monode’s enclosed, benchtop fiber laser marking system — a self-contained 20-watt platform designed for facilities that need permanent, non-contact marking without the footprint of a full integration package. Its Class 1 marking enclosure converts to Class 4 functionality for larger parts, and the 12″ x 18″ work area with 7″ of Z-axis travel handles a wide range of part geometries right out of the box.

Add to Quote
Download Spec Sheet
Request a Free Test Mark

Key Features

  • 20 Watt laser system
  • Class 1 Marking Enclosure — changeable to Class 4 functionality for large part marking
  • 4″ x 4″ marking window
  • Integrated red laser pointer for fast, accurate set-up
  • Powered Z-axis with 7″ of travel
  • 1064nm wavelength
  • FT-160 auto-focusing lens
  • 8mm aperture scan head
  • 12″ x 18″ work area
  • Runs on Traceable-IT software

Good For

  • Component identification and traceability
  • Serial numbering and part numbering
  • Logo marking
  • Security marking
  • Health & safety appliance marking
  • Certification marking
  • Decorative trophy & award marking
  • Time & date marking
  • Batch & shift coding
  • Calibration systems
  • Label & tag marking

Options / Accessories

  • Rotary attachment (standard 4″)
  • Tag feed
  • Integrated PC/monitor
  • Integrated fume extraction
