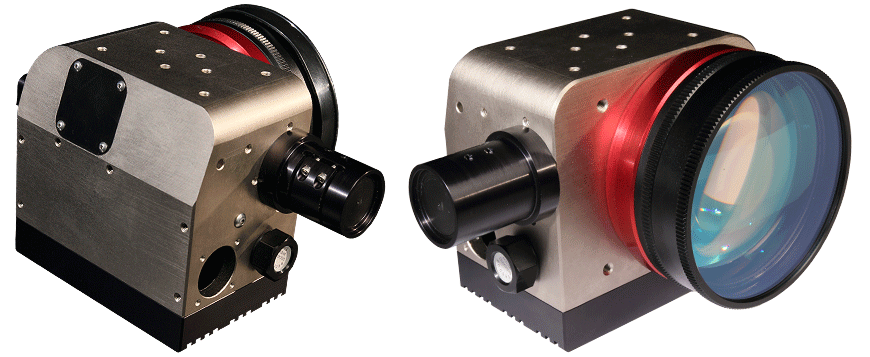

Vestige™ Ghost Integrator Laser Marking System

Non-contact marking, engineered to integrate anywhere on your line.

The Vestige™ Ghost is Monode’s OEM fiber laser integrator package, built for manufacturers who need to add permanent, non-contact marking into an existing robot cell, pedestal, or handheld setup — without the cost and footprint of a full enclosure. Power options from 4W to 50W and working areas from 50mm to 230mm mean the same core platform scales from small precision parts to large-format work areas, with pulsed and continuous wave marking available from a single laser.

Add to Quote
Download Spec Sheet
Request a Free Test Mark

Key Features

  • Non-contact marking reduces part fixturing costs and wear
  • Configurable for pedestal, robot arm, or handheld mounting
  • Pulsed and Continuous Wave (CW) operation from the same laser
  • Patent-pending Monode Laser Safety Nozzle — removes the need for a full laser safety enclosure in many setups
  • “Tri-Dundant” layered safety system protecting people and equipment
  • Complete error-proofing available with Mark2Verify (M2V) machine vision

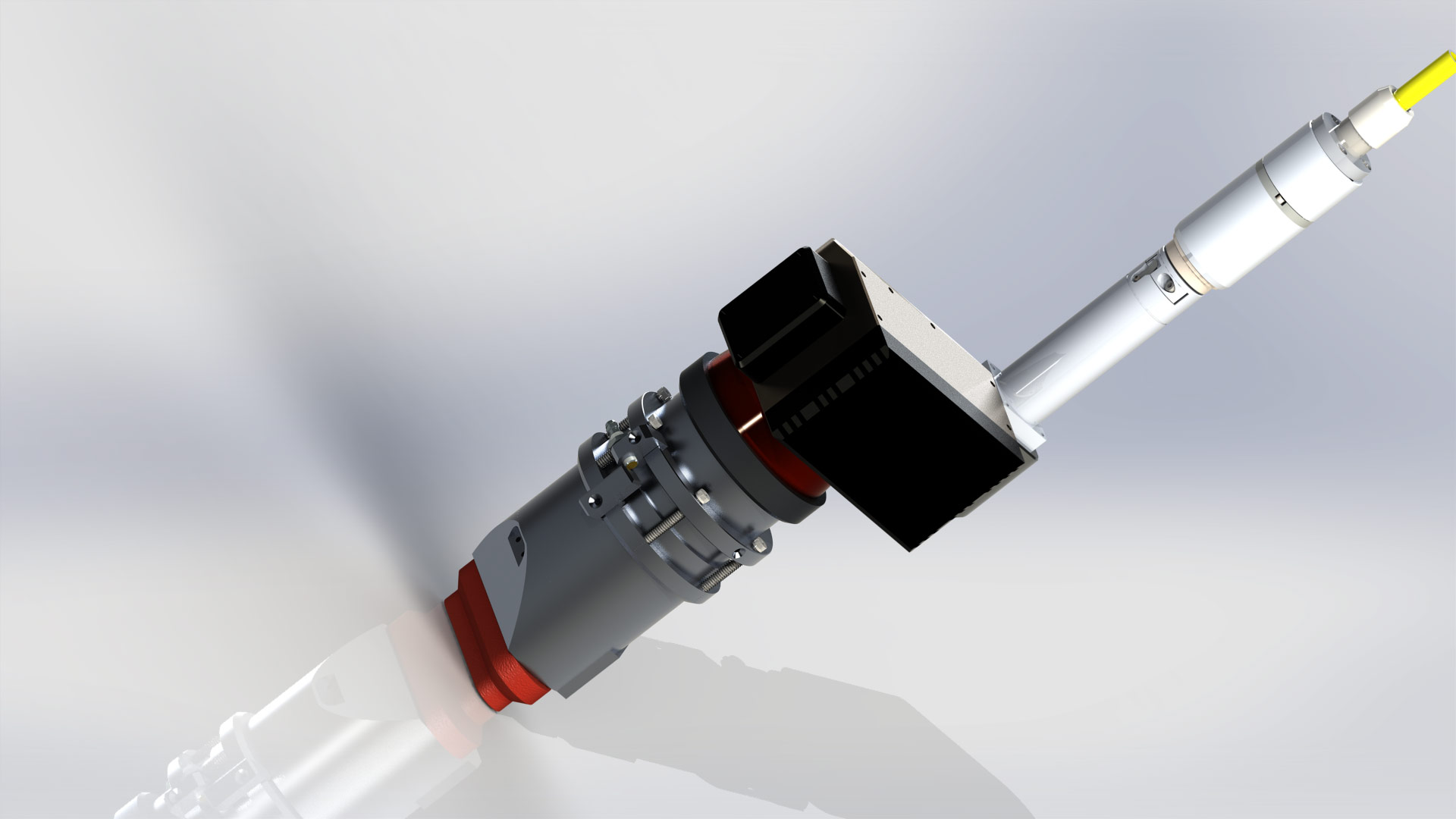

  • Modular, modern design: right-angle input/output adaptor, powered or manual Z-axis travel, nozzle end effector

Good For

  • Robotic and automated marking cells
  • OEM integrators building marking into larger equipment
  • High-mix production needing both pulsed and CW marking
  • Facilities looking to avoid a dedicated laser safety enclosure
  • Aerospace, defense, automotive, and medical parts requiring permanent traceability marks

Specifications

Working Area / Working Distance

Working Area (diameter) Working Distance
50mm (1.968″) 71.6mm (2.819″)
80mm (3.149″) 107.5mm (4.232″)
140mm (5.518″) 170.16mm (6.699″)
164mm (6.457″) 187.6mm (7.386″)
184mm (7.241″) 267mm (10.512″)
230mm (9.055″) 312.9mm (12.319″)

Commercial Off-the-Shelf (COTS) Power Options

Spec 4W 6W 10W 20W
Mode of Operation Pulsed Pulsed CW and Pulsed CW and Pulsed
Wavelength 1064nm typ. 1064nm typ. 1080nm typ. 1080nm typ.
Pulse Duration 60–80ns 60–80ns 50ns 50ns
Pulse Rep. Rate 5–25KHz (passive) 5–25KHz (passive) 20–100KHz 20–100KHz

Custom Power Options

Spec 10W 20W 30W 50W
Mode of Operation CW and Pulsed CW and Pulsed CW and Pulsed CW and Pulsed
Wavelength 1064nm typ. 1064nm typ. 1080nm typ. 1080nm typ.
Pulse Duration 7–80ns typ. 7–80ns typ. 50ns typ. 50ns typ.
Pulse Rep. Rate 10–100KHz 10–100KHz 20–100KHz 20–100KHz
