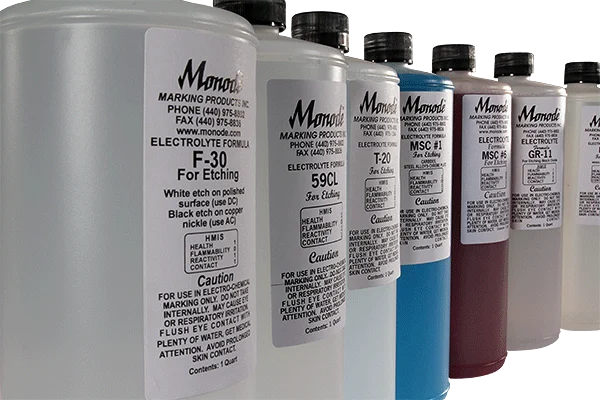

A row of Monode marking fluid bottles with labels showing different electrolyte formulas for etching

Electrolytes

The right blend for every base material.

Monode electrolytes are mild mineral-salt solutions custom blended to match the material being etched — conducting current and dissipating heat to keep your stencil and marking head cool while producing a stable, legible mark. Use the finder below to match an electrolyte to your material and mark depth, or search by name if you already know what you need.

Add to Quote
Electrolyte Name Aluminum Black Oxide Brass Bronze CAD Plating Carbides Cast Iron Chrome Cobalt Copper Enduracoat Hastelloy Inconel Nickel Steel, High & Tool Steel, Mild & Low Steel, Stainless Tin, Alloy or Plate Titanium Zinc Electroplate
353 ● ● ●
59CL NC ●
5S ●
91NR ● ●
A-10 ● ●
B-10 ● ● ● ● ● ●
B-20 ○ ● ● ○ ○ ● ●
B-5 ○
B-70 ●
C-10 ● ● ●
C-30 ● ●
C-50 ●
C-53
D-12 ○ ● ● ● ●
F-10 ● ● ● ● ● ● ● ●
F-20 ○ ● ● ● ● ● ●
F-30 ● ● ● ● ●
F-40 ○ ● ● ●
F-50 ● ● ●
F-60 ●
GR-11 ●
MSC#1 ● ○ ● ● ● ● ●
MSC#14 ● ●
MSC#17 ●
MSC#2 ● ● ●
MSC#22 ● ●
MSC#3 ○ ○
MSC#32 ○ ● ● ● ●
MSC#3NC ○ ○
MSC#4 ● ● ● ● ●
MSC#40 ●
MSC#41 ● ● ●
MSC#42 ● ● ● ●
MSC#5 ○ ● ● ●
MSC#52 ●
MSC#6 ●
MSC#7 ● ● ●
MSC#8 ● ●
MSC#82
MSC#9 ●
T-10 ●
T-10 NC ●
T-20 ●
● Dark to Black Mark ○ Light to White Mark

Key Features:

  • Custom-blended per material family for a stable, non-rub-off mark
  • Self-cleaning formulas available, reducing stencil image-area clogging
  • Supports both shallow (fast, cosmetic) and deep (DC, material-removing) etching
  • Compatible with Monode stencils, pads, and power units
  • Bulk and standard bottle sizing available

Good For: Matching electrolyte to base material · Stainless, aluminum, titanium/superalloy, carbon steel, and copper/brass etching · Reducing stencil clogging with self-cleaning formulas · Reorders for known SKUs
